Bronze Globe Valve (Union Bonnet)

Bronze Globe Valve (Union Bonnet)
Bronze Globe Valve (Union Bonnet)
Product Code : 17
Product Description

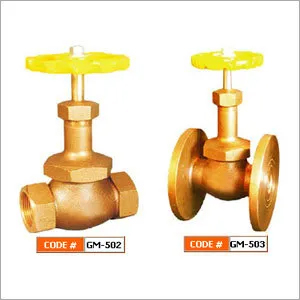

Bronze Globe Valve (Union Bonnet)

Specification & Features

  • Manufacture is to BS 5154/ B PN 32
  • Screwed Female Ends to BS: 21 / ISO: 7 / IS: 554
  • Flanged Ends to BS: 10 Table ‘F’
  • Inside Screwed, Rising Spindle with Back Seat Arrangement
  • S.S. Working Parts, Hand Wheel Operated.

Pressure / Temperature ratings

Temperature
.oCelsius

-10o to
+100o

120o

130o

140o

150o

160o

170o

180o

190o

198o

Pressure
bar

32.0

28.3

26.5

24.6

22.8

21.0

19.2

17.4

15.5

14.0

Materials of Construction

NAME OF PART

MATERIAL

STANDARD

Body, Bonnet & Gland
Disc Nut & Gland Nut
Stem, Disc & Body Seat Ring
Handwheel
Nut & Washer
Gland Packing

Bronze
Bronze
Stainless Steel
Cast Iron
Mild Steel
Graphoil

BS: 1982 CC 491K
BS: 1982 CC 491K
ASTM A276 TYPE410
BS 1561 GJL - 200
BS: 970

Testing: Each Valve Individually Tested to BS 5154

Sizes / Dimensions

Sizes

Dimensions (mm)

Inches.

mm

A

A'

B

1/4"

8

60

-

110

60

3/8"

10

60

-

110

60

1/2"

15

68

82

117

70

3/4"

20

84

96

132

80

1"

25

95

112

148

86

1-1/4"

32

106

119

176

102

1-1/2"

40

120

132

188

102

2"

50

146

157

216

127

2-1/2"

65

180

185

248

150

3"

80

200

213

270

170

4"

100

248

255

332

190

Option: Available with PTFE / Neoprene Seating, Suitable for Oil, Air & Gas applications.
